This class defines 2D geometric points, defined by their Cartesian coordinates. More...

#include <Point.hpp>

Inheritance diagram for iSeeML::geom::Point:

[legend]

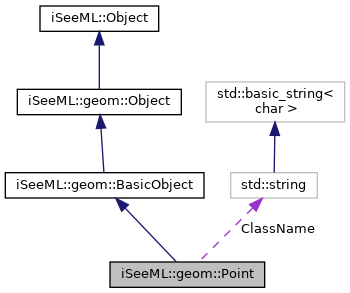

Collaboration diagram for iSeeML::geom::Point:

[legend]

Public Member Functions
	Point ()
	The default constructor, returning the frame origin (0,0).

	Point (const double &x, const double &y)
	The main constructor, creating a point from its Cartesian coordinates (Polar coordinates are not used for points in ISeeML). More...

iSeeML::Object &	clone () const
	Description method, giving a copy of the current point. More...

void	writeTo (ostream &O) const
	Description method, writing a description of the point into a stream: Cartesian coordinate in each dimension is written, between paranthesis and separated by commas. More...

const double &	xCoord () const
	Description method, giving the point's first coordinate. More...

const double &	yCoord () const
	Description method, giving the point's second coordinate. More...

Point &	moveTo (const double &x, const double &y)
	Modification method, moving the point to a given position. More...

Point &	translate (const iSeeML::geom::Vector &v)
	Modification method, translating the point along a vector. More...

bool	operator== (const Point &other) const
	Equality operator between points. More...

Point	operator+ (const iSeeML::geom::Vector &v) const
	Sum operator between a point and a vector, giving the translation of the current point along the vector. More...

Point	operator- (const iSeeML::geom::Vector &v) const
	Difference operator between a point and a vector, giving the translation of the current point along the opposite of the vector. More...

iSeeML::geom::Vector	operator- (const Point &other) const
	Difference operator between two points, giving the vector connecting these points. More...

double	distance (const Point &other) const
	Various method, giving the distance between two points. More...

double	sqrDist (const Point &other) const
	Gives the square of the distance between two points. More...

Public Member Functions inherited from iSeeML::geom::Object
virtual bool	operator== (const iSeeML::geom::Object &other) const
	Equality operator between geometric objects. More...

Public Member Functions inherited from iSeeML::Object
virtual	~Object ()
	This virtual class needs a virtual destructor.

virtual const string	className () const
	Description method, giving the object's class name. More...

bool	sameClass (const iSeeML::Object &other)
	Method verifying that a given object has the same type (same class name) than the current one. More...

Static Public Attributes
static const string	ClassName
	The class name is public, as this class can be instanced. More...

Protected Member Functions
int	algDimension () const
	Description method, giving the dimension of the containing space (2) when this point is considered as an algebraic vector. More...

double	algCoord (const int i) const
	Description method, giving Cartesian coordinate of given index of the point. More...

Protected Member Functions inherited from iSeeML::Object
virtual void	algWriteTo (ostream &O) const
	Description method for algebraic vectors, writing this vector in a given output stream: coordinates for each dimension are written, between paranthesis and separated by commas. More...

Additional Inherited Members
Static Public Member Functions inherited from iSeeML::Object
template<class T >
static const T &	min (const T &a, const T &b)
	Method giving the minimum of two elements. More...

template<class T >
static const T &	max (const T &a, const T &b)
	Method giving the maximum of two elements. More...

static double	sqr (const double &x)
	Method giving the square of a double. More...

static double	mod2pi (const double &theta)
	Method giving the angle between - $\pi$ (excluded) and $\pi$ (included), which is equal to a given angle modulo 2 $\pi$ . More...

static double	rad2deg (const double &theta)
	Method transforming an angle in radian, $x \pi$ with between -1 (excluded) and 1 (included), into its equivalent in degree, i.e. More...

static double	deg2rad (const double &theta)
	Method transforming an angle in degree, with between -1 (excluded) and 1 (included), into its equivalent in radian, i.e. More...

static bool	isPositive (const double &x)
	Method telling whether a double is strictly positive. More...

static bool	isNegative (const double &x)
	Method telling whether a double is strictly negative. More...

static bool	isZero (const double &x)
	Method comparing a double to zero. More...

static int	sign (const double &x)
	Method giving the sign of a double. More...

Related Functions inherited from iSeeML::Object
ostream &	operator<< (ostream &O, const iSeeML::Object &o)
	Modification method, writing a description of a ISeeML object in a given output stream. More...

Detailed Description

This class defines 2D geometric points, defined by their Cartesian coordinates.

This class contains description methods giving Cartesian coordinates as well as the writeTo method, a modification method giving translation of the point, the corresponding operator as well as the equality operator and difference operators between a point and a vector or between
two points,and at last a method computing the distance separating two points.

Author: Alexis Scheuer.

Version: 1.0

Examples: wxGuiFwd.cpp.

Constructor & Destructor Documentation

◆ Point()

iSeeML::geom::Point::Point	(	const double &	x,
		const double &	y
	)

inline

The main constructor, creating a point from its Cartesian coordinates (Polar coordinates are not used for points in ISeeML).

Parameters

x	the first Cartesian coordinate of the point,
y	the second Cartesian coordinate of the point.

See also: xCoord, yCoord.

Member Function Documentation

◆ algCoord()

double iSeeML::geom::Point::algCoord ( const int i ) const

inlineprotectedvirtual

Description method, giving Cartesian coordinate of given index of the point.

Parameters

i	the index of the searched Cartesian coordinate.

Precondition: the parameter is an index, and should be equal to one or two. If not, and if ISEEML_CHECK_GEOM_POINT_PRECOND is defined (see CompilerFlags.h), an error is generated.

Returns: the double coordinate associated to the index if this one is between 1 and dimension, or 0.

See also: xCoord, yCoord, algDimension.

Reimplemented from iSeeML::Object.

◆ algDimension()

int iSeeML::geom::Point::algDimension ( ) const

inlineprotectedvirtual

Description method, giving the dimension of the containing space (2) when this point is considered as an algebraic vector.

This representation is mainly used to define a unified writeTo. Dimension cannot be static, as it is virtual.

Reimplemented from iSeeML::Object.

◆ clone()

iSeeML::Object& iSeeML::geom::Point::clone ( ) const

inlinevirtual

Description method, giving a copy of the current point.

This clone is dynamically allocated (using default copy constructor), it has to be deleted later.

Returns: a copy/clone of the current point.

Implements iSeeML::Object.

◆ distance()

double iSeeML::geom::Point::distance ( const Point & other ) const

inline

Various method, giving the distance between two points.

It simply computes the length of the connecting vector.

Parameters

other another point.

Returns: the distance between the two points.

See also: operator-(const iSeeML::geom::Point&), iSeeML::geom::Vector::length.

◆ moveTo()

Point& iSeeML::geom::Point::moveTo	(	const double &	x,
		const double &	y
	)

inline

Modification method, moving the point to a given position.

The original point is changed.

Parameters

x	the first coordinate of the position,
y	the second coordinate of the position.

Returns: the point, after tranformation.

See also: xCoord, yCoord.

◆ operator+()

Point iSeeML::geom::Point::operator+ ( const iSeeML::geom::Vector & v ) const

inline

Sum operator between a point and a vector, giving the translation of the current point along the vector.

Parameters

v	the vector of the translation.

Returns: the translated point.

See also: translate.

◆ operator-() [1/2]

Point iSeeML::geom::Point::operator- ( const iSeeML::geom::Vector & v ) const

inline

Difference operator between a point and a vector, giving the translation of the current point along the opposite of the vector.

Parameters

v	the opposite vector of the translation.

Returns: the translated point.

See also: operator+, iSeeML::geom::Vector::operator-().

◆ operator-() [2/2]

iSeeML::geom::Vector iSeeML::geom::Point::operator- ( const Point & other ) const

inline

Difference operator between two points, giving the vector connecting these points.

Parameters

other another point.

Returns: the vector going from the second given point to the first one (the current).

◆ operator==()

bool iSeeML::geom::Point::operator== ( const Point & other ) const

inline

Equality operator between points.

Parameters

other another point.

Returns: whether the two points are equal.

See also: xCoord, yCoord, iSeeML::Object::isZero.

◆ sqrDist()

double iSeeML::geom::Point::sqrDist ( const Point & other ) const

inline

Gives the square of the distance between two points.

It simply computes the square length of the connecting vector.

Parameters

other another point.

Returns: the square of the distance between the two points.

See also: operator-(const iSeeML::geom::Point&), iSeeML::geom::Vector::sqrLength.

◆ translate()

Point& iSeeML::geom::Point::translate ( const iSeeML::geom::Vector & v )

inlinevirtual

Modification method, translating the point along a vector.

The original point is changed (addition without modification is obtained using operator+(const iSeeML::geom::Vector&) const).

Parameters

v	the vector of the translation.

Returns: the point, after translation.

Implements iSeeML::geom::Object.

◆ writeTo()

void iSeeML::geom::Point::writeTo ( ostream & O ) const

inlinevirtual

Description method, writing a description of the point into a stream: Cartesian coordinate in each dimension is written, between paranthesis and separated by commas.

Parameters

O	the output stream in which description is written.

Implements iSeeML::Object.

◆ xCoord()

const double& iSeeML::geom::Point::xCoord ( ) const

inline

Description method, giving the point's first coordinate.

Returns: the point's first coordinate.

Examples: wxGuiFwd.cpp.

◆ yCoord()

const double& iSeeML::geom::Point::yCoord ( ) const

inline

Description method, giving the point's second coordinate.

Returns: the point's second coordinate.

Examples: wxGuiFwd.cpp.

Member Data Documentation

◆ ClassName

const string iSeeML::geom::Point::ClassName

static

The class name is public, as this class can be instanced.

See also: className.

The documentation for this class was generated from the following file:

/mnt/data/ajs/Loria/Compte/Recherche/Prog/C++/ISeeML/include/iSeeML/geom/Point.hpp
