This class is the base class of ISeeML: every class of ISeeML inherits this one. More...

#include <Object.hpp>

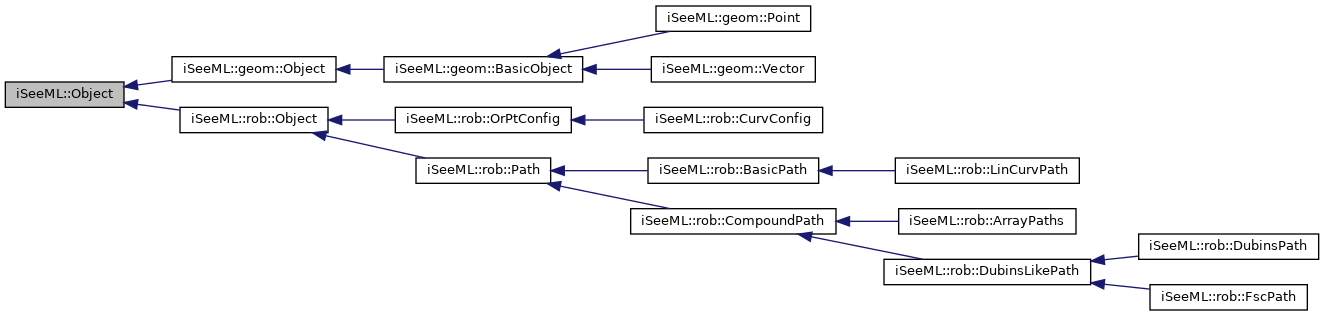

Inheritance diagram for iSeeML::Object:

[legend]

Public Member Functions
virtual	~Object ()
	This virtual class needs a virtual destructor.

virtual const string	className () const
	Description method, giving the object's class name. More...

virtual iSeeML::Object &	clone () const =0
	Description method, giving a copy of the current object. More...

virtual void	writeTo (ostream &O) const =0
	Description method, writing a description of the object into a given output stream. More...

bool	sameClass (const iSeeML::Object &other)
	Method verifying that a given object has the same type (same class name) than the current one. More...

Static Public Member Functions
template<class T >
static const T &	min (const T &a, const T &b)
	Method giving the minimum of two elements. More...

template<class T >
static const T &	max (const T &a, const T &b)
	Method giving the maximum of two elements. More...

static double	sqr (const double &x)
	Method giving the square of a double. More...

static double	mod2pi (const double &theta)
	Method giving the angle between - $\pi$ (excluded) and $\pi$ (included), which is equal to a given angle modulo 2 $\pi$ . More...

static double	rad2deg (const double &theta)
	Method transforming an angle in radian, $x \pi$ with between -1 (excluded) and 1 (included), into its equivalent in degree, i.e. More...

static double	deg2rad (const double &theta)
	Method transforming an angle in degree, with between -1 (excluded) and 1 (included), into its equivalent in radian, i.e. More...

static bool	isPositive (const double &x)
	Method telling whether a double is strictly positive. More...

static bool	isNegative (const double &x)
	Method telling whether a double is strictly negative. More...

static bool	isZero (const double &x)
	Method comparing a double to zero. More...

static int	sign (const double &x)
	Method giving the sign of a double. More...

Protected Member Functions
virtual int	algDimension () const
	Description method for algebraic vectors, giving the dimension of the containing space (default is zero). More...

virtual double	algCoord (const int) const
	Description method for algebraic vectors, giving coordinate of given index for this vector. More...

virtual void	algWriteTo (ostream &O) const
	Description method for algebraic vectors, writing this vector in a given output stream: coordinates for each dimension are written, between paranthesis and separated by commas. More...

Related Functions
(Note that these are not member functions.)
ostream &	operator<< (ostream &O, const iSeeML::Object &o)
	Modification method, writing a description of a ISeeML object in a given output stream. More...

Detailed Description

This class is the base class of ISeeML: every class of ISeeML inherits this one.

Every ISeeML object has to overload className(), clone() and writeTo() virtual methods. Method className is used to detect problems with virtual methods (e.g. "equality operator" of geometric objects). Method clone is used in arrays of objects. Method writeTo is used by output stream's operator<<.

This class also provides a set of common methods (sqr, ..., max), some of them using a private static small value.

Author: Alexis Scheuer.

Version: 1.0

Member Function Documentation

◆ algCoord()

virtual double iSeeML::Object::algCoord ( const int ) const

inlineprotectedvirtual

Description method for algebraic vectors, giving coordinate of given index for this vector.

This method is not in a seperate class, to avoid multiple inheritance (which drastically increases the computation time).

Parameters

i	the index of the searched coordinate.

Precondition: an error message is generated if check flag ISEEML_CHECK_OBJECT_PRECOND (see CompilerFlags.h) is defined, as this method should not be called (it should be overloaded).

Returns: 0.

Reimplemented in iSeeML::rob::OrPtConfig, iSeeML::geom::Vector, iSeeML::rob::CurvConfig, and iSeeML::geom::Point.

◆ algDimension()

virtual int iSeeML::Object::algDimension ( ) const

inlineprotectedvirtual

Description method for algebraic vectors, giving the dimension of the containing space (default is zero).

This method is not in a seperate class, to avoid multiple inheritance (which drastically increases the computation time).

This representation is mainly used to define a unified writeTo. Dimension cannot be static, as it is virtual.

Reimplemented in iSeeML::rob::OrPtConfig, iSeeML::geom::Vector, iSeeML::rob::CurvConfig, and iSeeML::geom::Point.

◆ algWriteTo()

virtual void iSeeML::Object::algWriteTo ( ostream & O ) const

inlineprotectedvirtual

Description method for algebraic vectors, writing this vector in a given output stream: coordinates for each dimension are written, between paranthesis and separated by commas.

This method is not in a seperate class, to avoid multiple inheritance (which drastically increases the computation time).

Parameters

O	the output stream in which description is written.

See also: algCoord, algDimension, writeTo.

◆ className()

virtual const string iSeeML::Object::className ( ) const

inlinevirtual

Description method, giving the object's class name.

This method is virtual in order to return the correct value through polymorphism, while a static field is also defined (but this one is private in abstract class).

Class name is used in error messages, and to verify type in redefinitions of some virtual methods.

Returns: the class name as a string.

See also: ClassName.

◆ clone()

virtual iSeeML::Object& iSeeML::Object::clone ( ) const

pure virtual

Description method, giving a copy of the current object.

This clone is dynamically allocated (and can be built easily using a copy constructor), it has to be deleted later.

Precondition: memory should not be full. If memory is full and ISEEML_CHECK_NIL_POINTER is defined (see CompilerFlags.h), an error message is generated and the program exits.

Returns: a copy/clone of the current object.

Implemented in iSeeML::rob::FscPath, iSeeML::rob::LinCurvPath, iSeeML::rob::OrPtConfig, iSeeML::rob::DubinsPath, iSeeML::rob::CurvConfig, iSeeML::geom::Vector, iSeeML::rob::ArrayPaths, and iSeeML::geom::Point.

◆ deg2rad()

static double iSeeML::Object::deg2rad ( const double & theta )

inlinestatic

Method transforming an angle in degree, $180 x$ with $x$ between -1 (excluded) and 1 (included), into its equivalent in radian, i.e.

$x \pi$ .

Parameters

theta an angle in degree.

Returns: the angle in gradian.

◆ isNegative()

static bool iSeeML::Object::isNegative ( const double & x )

inlinestatic

Method telling whether a double is strictly negative.

Computes the double's opposite, and checks if it is positive.

Parameters

x	the double checked.

Returns: true if the opposite of the double is positive.

See also: isPositive.

◆ isPositive()

static bool iSeeML::Object::isPositive ( const double & x )

inlinestatic

Method telling whether a double is strictly positive.

Parameters

x	the double checked.

Returns: true if the double is bigger than ISeeML' small value.

◆ isZero()

static bool iSeeML::Object::isZero ( const double & x )

inlinestatic

Method comparing a double to zero.

Parameters

x	the double compared to zero.

Returns: true if the double's absolute value is smaller than ISeeML' small value.

Examples: wxGuiFwd.cpp.

◆ max()

template<class T >

static const T& iSeeML::Object::max	(	const T &	a,
		const T &	b
	)

inlinestatic

Method giving the maximum of two elements.

This method uses templates, the elements do not have to be ISeeML objects.

Parameters

a	A first element,
b	a second one.

Returns: the maximum between the two given elements.

◆ min()

template<class T >

static const T& iSeeML::Object::min	(	const T &	a,
		const T &	b
	)

inlinestatic

Method giving the minimum of two elements.

This method uses templates, the elements do not have to be ISeeML objects.

Parameters

a	A first element,
b	a second one.

Returns: the minimum between the two given elements.

◆ mod2pi()

static double iSeeML::Object::mod2pi ( const double & theta )

inlinestatic

Method giving the angle between - $\pi$ (excluded) and $\pi$ (included), which is equal to a given angle modulo 2 $\pi$ .

Parameters

theta an angle.

Returns: the given angle modulo 2 $\pi$ , between - $\pi$ (excluded) and $\pi$ (included).

◆ rad2deg()

static double iSeeML::Object::rad2deg ( const double & theta )

inlinestatic

Method transforming an angle in radian, $x \pi$ with $x$ between -1 (excluded) and 1 (included), into its equivalent in degree, i.e.

$180 x$ .

Parameters

theta an angle in gradian.

Returns: the angle in degree.

◆ sameClass()

bool iSeeML::Object::sameClass ( const iSeeML::Object & other )

inline

Method verifying that a given object has the same type (same class name) than the current one.

Parameters

other the given object.

Returns: whether the two objects have the same class name.

See also: className.

◆ sign()

static int iSeeML::Object::sign ( const double & x )

inlinestatic

Method giving the sign of a double.

Parameters

x	the double which sign is searched.

Returns: the sign of the double, as an integer in {-1, 0, 1}.

See also: isZero, isPositive, isNegative.

◆ sqr()

static double iSeeML::Object::sqr ( const double & x )

inlinestatic

Method giving the square of a double.

Parameters

x	the double whose square is wanted.

Returns: the square of the given double.

◆ writeTo()

virtual void iSeeML::Object::writeTo ( ostream & O ) const

pure virtual

Description method, writing a description of the object into a given output stream.

This method is preferred to a toString method, as writting into a stream is much easier than writting into a string.

Parameters

O	the output stream in which description is written.

Implemented in iSeeML::rob::FscPath, iSeeML::rob::LinCurvPath, iSeeML::rob::OrPtConfig, iSeeML::rob::DubinsPath, iSeeML::geom::Vector, iSeeML::rob::CurvConfig, iSeeML::geom::Point, and iSeeML::rob::CompoundPath.

Friends And Related Function Documentation

◆ operator<<()

ostream & operator<<	(	ostream &	O,
		const iSeeML::Object &	o
	)

Parameters

O	the output stream in which description is written,
o	the ISeeML object whose description is written.

Returns: the output stream, after writing in it.

See also: iSeeML::Object::writeTo.

The documentation for this class was generated from the following file:

/mnt/data/ajs/Loria/Compte/Recherche/Prog/C++/ISeeML/include/iSeeML/Object.hpp
